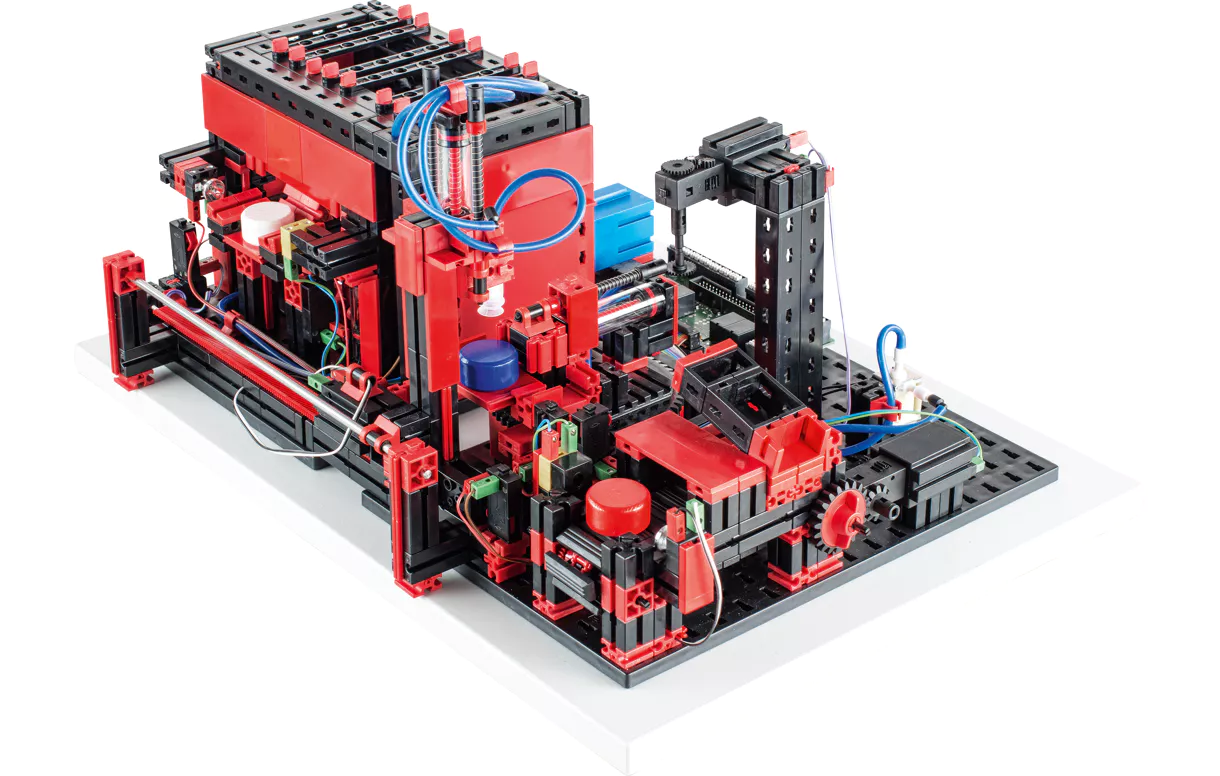

Multi Working Station with Furnace 24V
Top Features
- Ideal training, simulation and demonstration model for training and industrial automation
- Already completed, stable training model
- Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
- CAUTION: absolutely necessary for operation is a PLC control 24V
- Learn more
Product Description
Furnace with pneumatic sliding door. Downstream processing station with pneumatic transfer unit including vacuum gripper, cutter with rotary table and conveyor belt.
Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.
- Current consumption: I = ca. 1,6A
- Inputs digital: 9
- Outputs 24V: 14
Content
- 5x Mini motor (DC motor)
- 7x Push button (limit switch)
- 2x Phototransistor
- 2x LED light barrier
- 4x Solenoid valve
- Compressor
Technical Data
| Power supply | 24 V |
| Amount | 1 pcs |
| GTIN (EAN-Code) | 4048962250398 |
