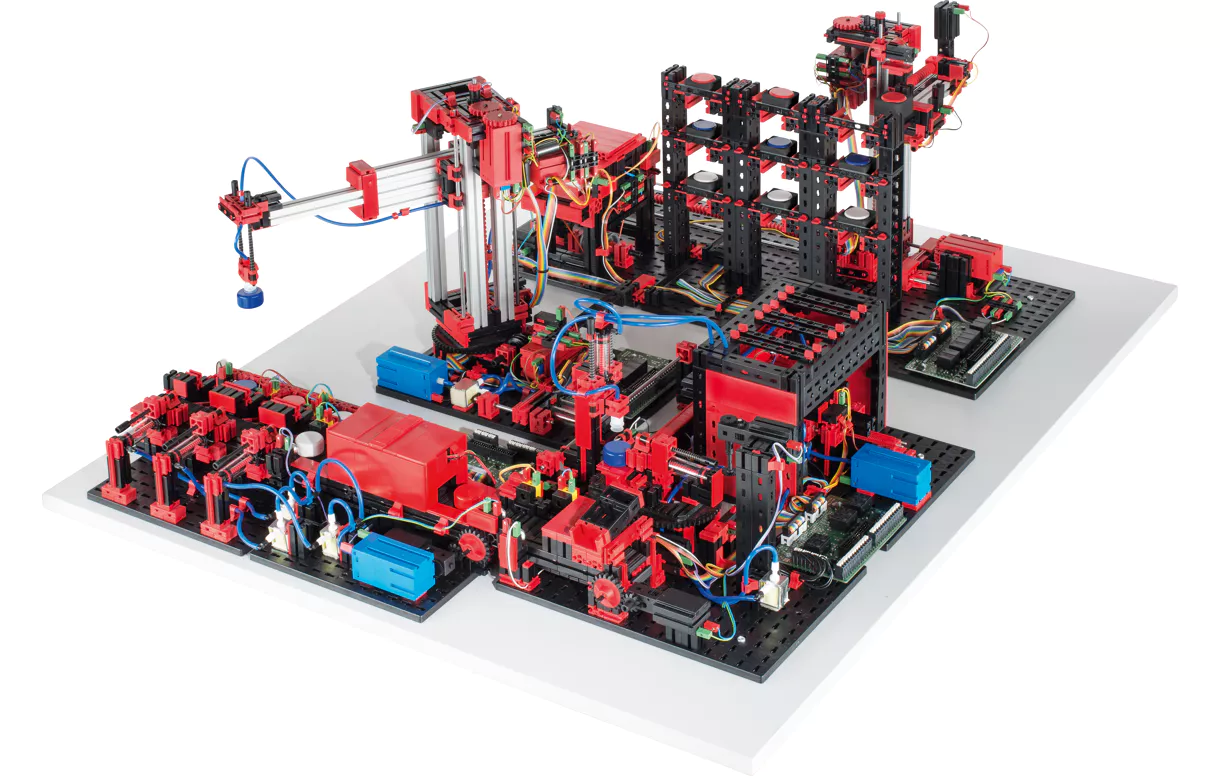

Combination of the models Sorting Line With Color Detection, Multi Processing Station With Oven, Automated High-Bay Warehouse and Vacuum Gripper Robot. Self-contained material cycle: workpieces are retrieved from the Automated High-Bay Warehouse, processed in the Multi Processing Station With Oven, then sorted by color in the Sorting Line With Color Detection and finally stored in the Automated High-Bay Warehouse again.
Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.

• Current consumption: I = ca. 4,8A
• Inputs digital: 22
• Inputs analog 0-10V DC: 1
• Fast counting inputs: 5 oder 10 (with direction detection)
• Outputs 24V: 35
