Conveyor Belt 24V
Top Features
- Ideal training, simulation and demonstration model for training and industrial automation
- Already completed, stable training model
- Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
- CAUTION: absolutely necessary for operation is a PLC control 24V
- Learn more
Product Description

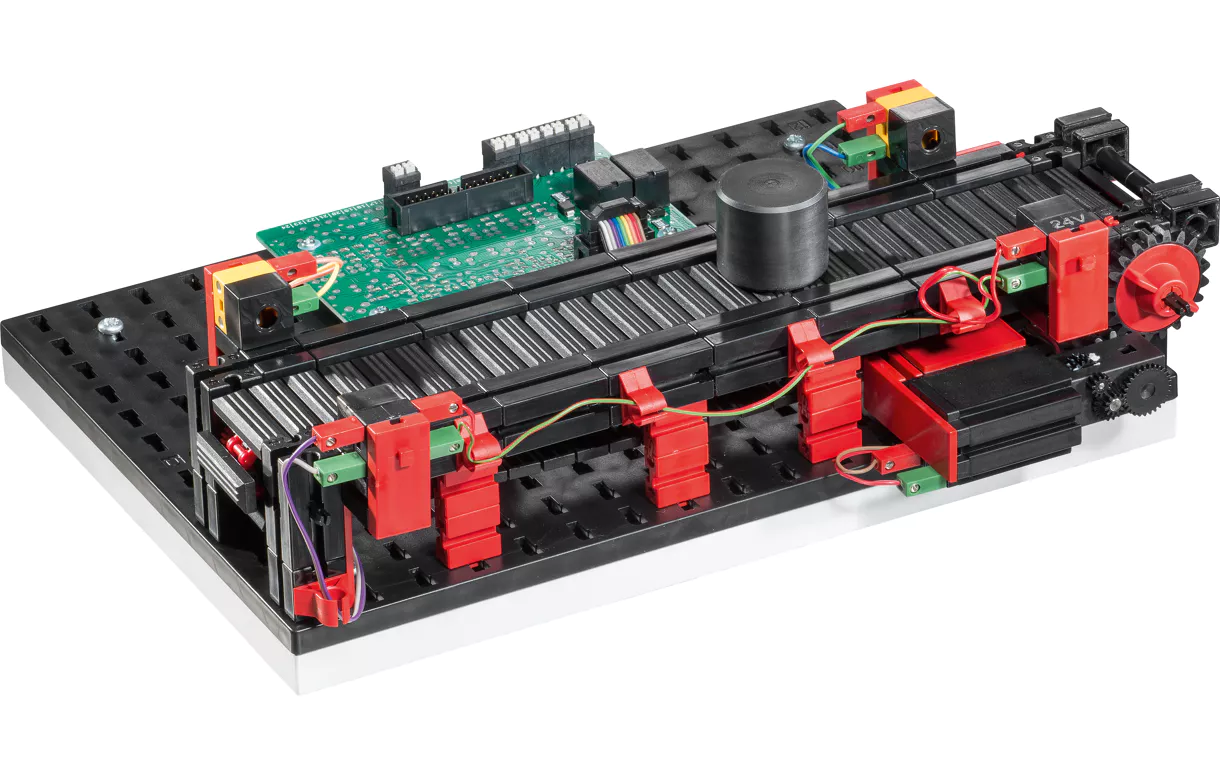

Transport belt with a length of 275 mm transports workpieces with a diameter of up to 29 mm. Several conveyor belts can be connected to each other to form an endless conveyor belt. The model is ideally combinable with the training model “3-axis robot with gripper”.
Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.
Content
- XS motor (DC motor)
- Push button (limit switch)
- 2x Phototransistor
- 2x LED light barrier
Technical Data
| Power supply | 24 V |
| Amount | 1 pcs |
| GTIN (EAN-Code) | 4006209504642 |
