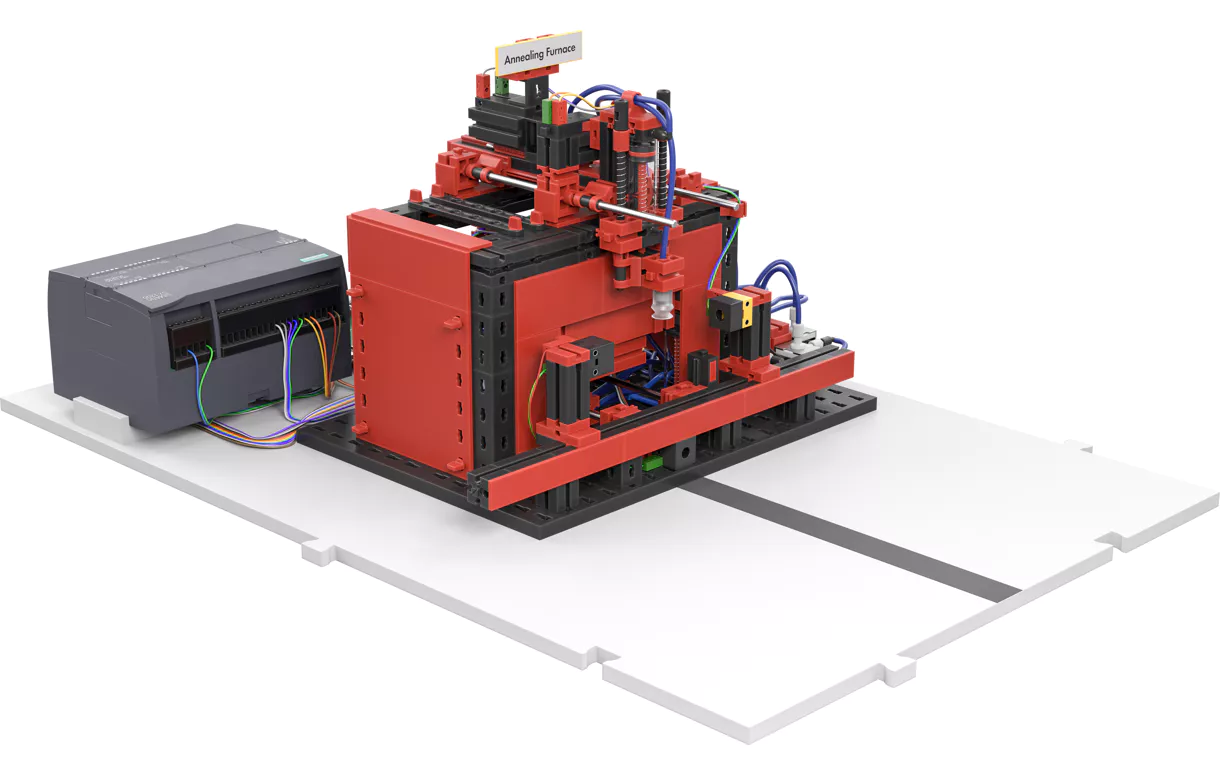

W1_P_P_571909_Brennofen_Annealing_Furnace (1)

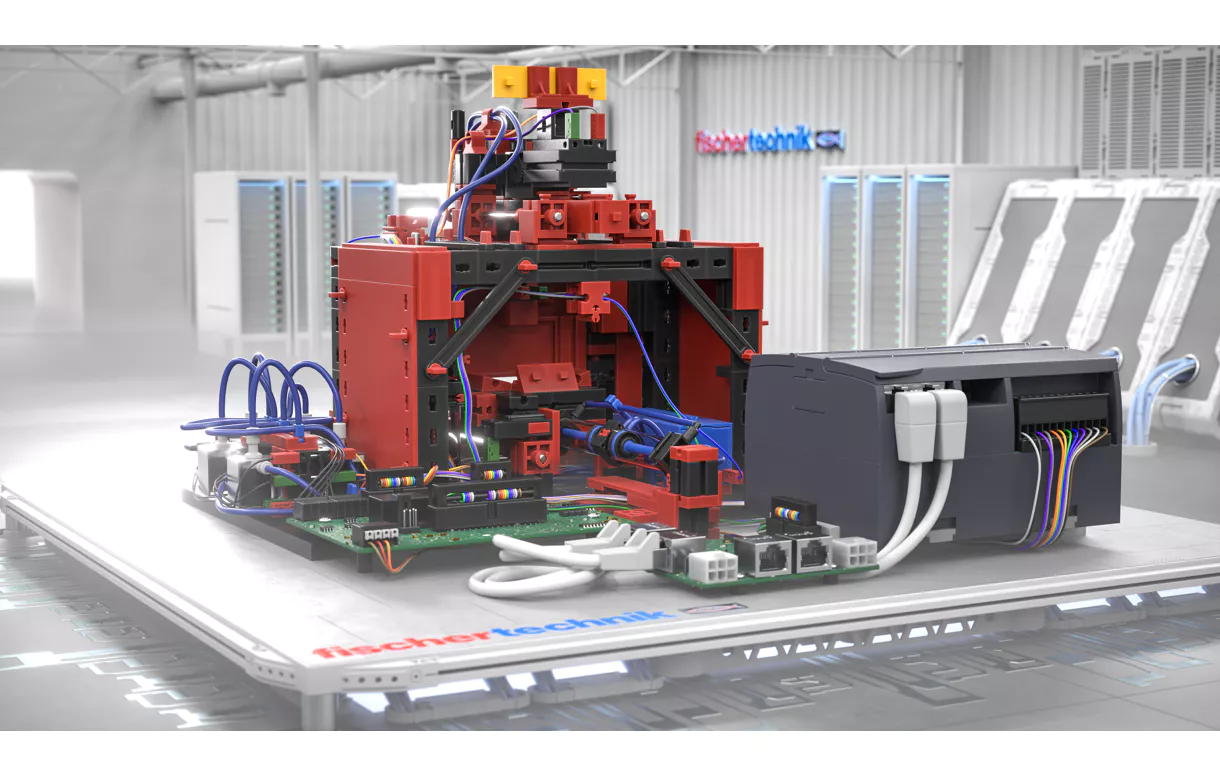

W1_P_P_571909_Brennofen_Szenerie_1_Annealing_Furnace_Scenery_1
W1_P_P_571909_Brennofen_Szenerie_2_Annealing_Furnace_Scenery_2
W1_P_P_571909_Brennofen_Szenerie_3_Annealing_Furnace_Scenery_3

APS Add On: Annealing Furnace

To the e-learning

Top Features

  • Ideal for adding another production module to the Agile Production Simulation.
  • Fully assembled and programmed model
  • SIEMENS S7-1200 controller included and installed
  • The APS Add On: Annealing Furnace unlocks additional learning content in the Digital Learning Platform
  • ATTENTION: Can only be used in combination with the Agile Production Simulation
Product Description

The APS Add On: Annealing Furnace adds a new production module to the Agile Production Simulation (APS). The standard configuration with a drilling and milling module is extended by the optionof a Annealing Furnace. The additional process module allows theintroduction of new derivatives into production or the expansion of
existing production configurations by an additional process step.

The Annealing Furnace consists of a docking station for the Automated Guided Vehicle system (AGV) and a vacuum gripper that transports the workpiece into the Annealing Furnace using pneumatics.Hardening is simulated there with a red light. After the process, theworkpiece is removed from the Annealing Furnace using a gripperand placed back on the AGV.

Control unit:

  • 24V model controlled with SIEMENS S7-1200
  • Program in structured text already played on controller
  • 1x SIEMENS S7-1200 control unit
  • 4x push buttons
  • 1x phototransistor
  • 1x compressor 24V
  • 5x 3/2-way solenoid valve 24V
  • 1x vacuum suction cup
  • 7x pneumatic cylinder
  • 3x light barriers LED 24V
  • 1x motor 24V
Amount1 pcs
GTIN (EAN-Code)4048962516708
